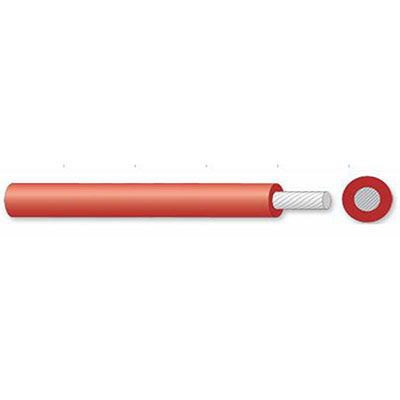

JPN Standard PE Insulated RF Coaxial Cable

Short Description:

JPN Standard Series of Solid PE Insulated RF Coaxial Cable

The products is manufactured according to the standards of JIS C 3501. Cable mainly used for the Fixed or mobile radiocommunication signal transmission,Digital program Controlled Switch signal transmission,and between internal connection of Equipment and Machine and Digital Distribution Frame signal transmission.

Send email to us

Product Detail

Product Tags

PRODUCT PARAMETERS

型号 TYPE	导体结构 Conductor Structure (NO./MM)	绝缘外径 Insulation outer diameter (mm)	护套 Jacket		重量 Weight (Kg/Km)	介电强度 Dielectric Strength （Kv）
型号 TYPE	导体结构 Conductor Structure (NO./MM)	绝缘外径 Insulation outer diameter (mm)	厚度 Thickness (mm)	外径 outer diameter (mm)	重量 Weight (Kg/Km)	介电强度 Dielectric Strength （Kv）
1.5C-2V	1×0.26	1.5	0.45	2.80	13	1.5
2.5C-2V	1×0.40	2.4	0.60	4.00	25	2.5
3C-2V	1×0.50	3.0	0.66	5.00	42	3.0
3C-2W	1×0.50	3.0	0.66	5.40	75	3.0
5C-2V	1×0.80	4.9	0.85	7.40	74	5.5
5C-2W	1×0.80	4.9	0.85	7.80	120	5.5
1.5D-2V	7×0.18	1.6	0.45	2.90	15	2.0
1.5D-2W	7×0.18	1.6	0.45	3.30	20	2.0
2.5D-2V	1×0.80	2.7	0.60	4.30	35	2.0
3D-2V	7×0.32	3.0	0.80	5.00	44	4.0
5D-2V	1×1.40	4.8	0.93	7.30	80	6.5
5D-2W	1×1.40	4.8	1.03	8.00	110	6.5
8D-2V	7×0.80	7.8	1.30	11.10	180	10.5
