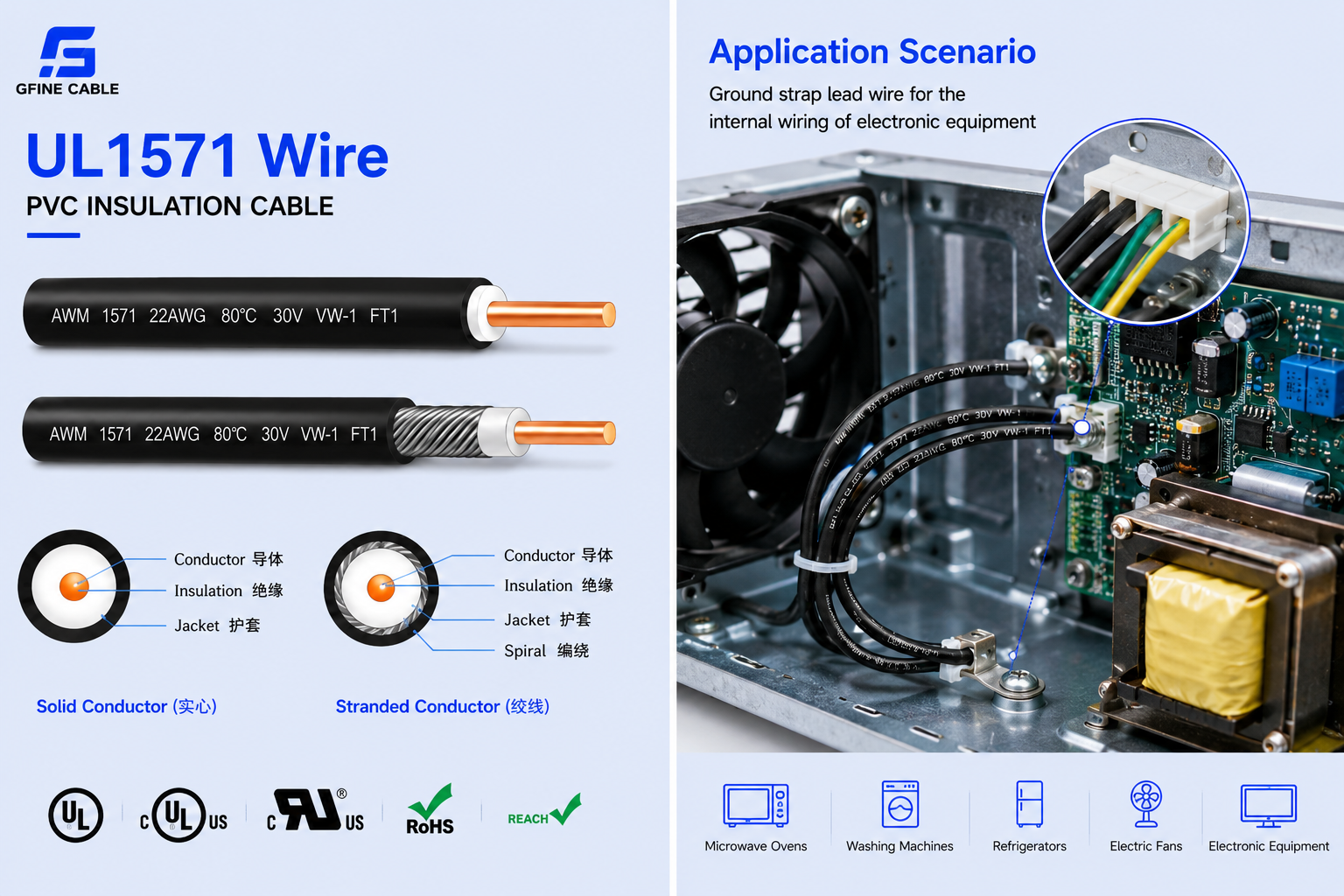

UL1571 HOOK UP WIRE

Short Description:

80ºC 30V PVC INSULATION WIRE

Product Detail

Product Tags

PRODUCT DESCRIPTION
1. Rated temperature:80ºC
2.Rated voltage:30V
3.According to:UL subject 758,UL1581
4.Solid or Stranded,tinned or bare copper conductor MIN 50AWG
5.PVC OR SR-PVC insulation.
6.Passes UL VW-1 & CSA FT1 Vertical flame test
7.Environmental testing pass RoHS
8.Ground strap lead wire for the internal wiring of electronic equipment
PRODUCT PARAMETERS

导体 Conductor			绝缘 Insulation		缠绕 Spiral	护套 Jacket		最大导体电阻
规格 AWG	构造Construction (No./mm)	线径DIA(mm)	厚度 Thickness(mm)	外径 OD(mm)	构造Construction (No./mm)	厚度Thickness(mm)	外径 OD(mm)	Max.COND. Resistance at 20℃(Ω/km)
30	7/0.10	0.3	0.23	0.80	-	-	-	381
28	7/0.127	0.38	0.23	0.85	-	-	-	239
26	7/0.16	0.48	0.23	1.00	-	-	-	150
24	11/0.16	0.61	0.23	1.10	-	-	-	94.2
22	17/0.16	0.76	0.23	1.30	-	-	-	59.4
20	21/0.178	0.94	0.23	1.50	-	-	-	36.7
30	7/0.10	0.3	0.23	0.80	21/0.10	0.3	1.7	381
28	7/0.127	0.38	0.23	0.85	24/0.10	0.3	1.8	239
26	7/0.16	0.48	0.23	1.00	29/0.10	0.3	1.9	150
24	11/0.16	0.61	0.23	1.10	32/0.10	0.3	2.0	94.2
22	17/0.16	0.76	0.23	1.30	37/0.10	0.3	2.3	59.4
20	21/0.178	0.94	0.23	1.50	42/0.10	0.3	2.5	36.7
18	16/0.254	1.17	0.23	1.80	50/0.10	0.3	2.8	23.2
16	26/0.254	1.49	0.23	2.10	49/0.12	0.3	3.1	14.6
